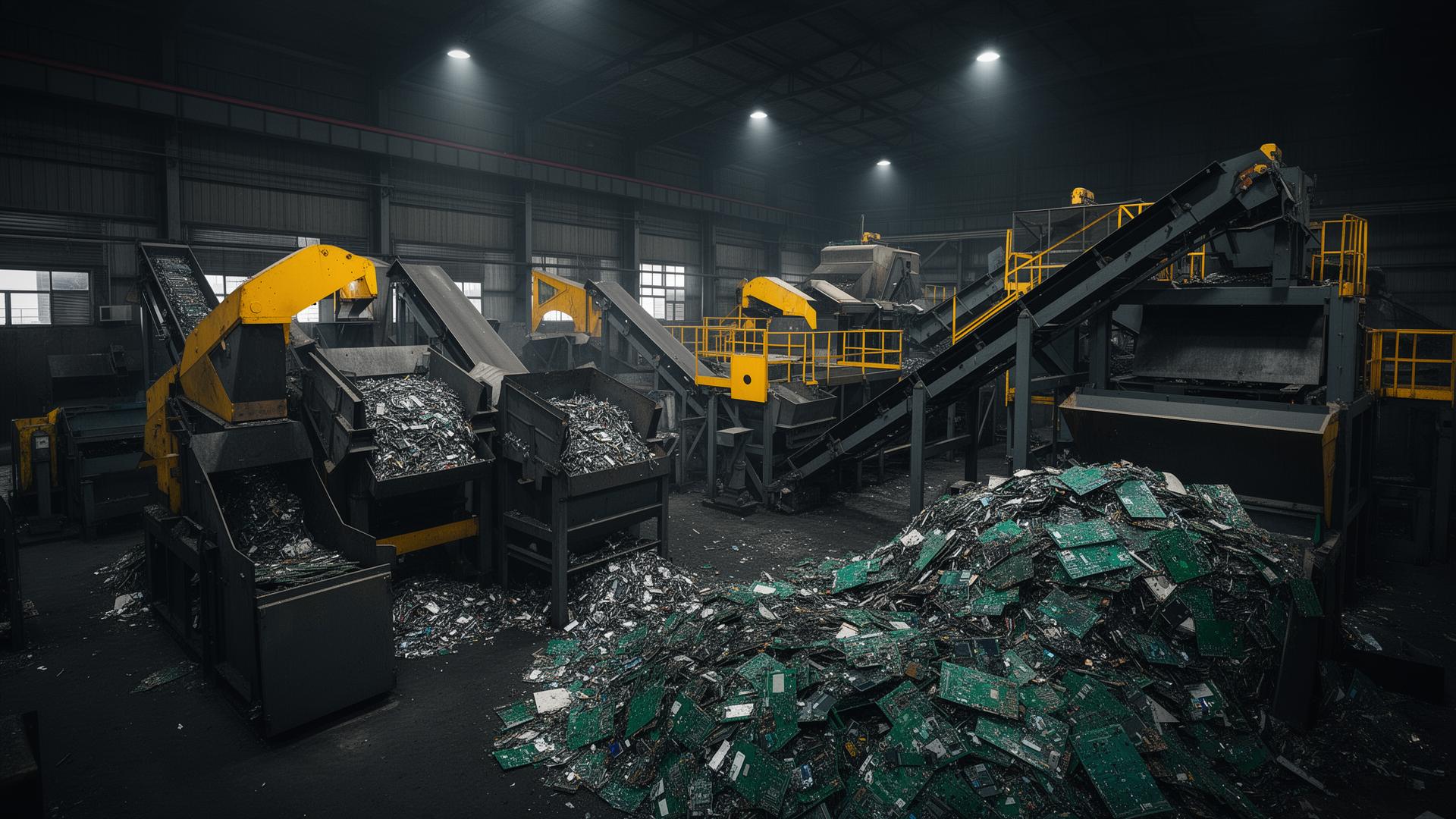

Complete Automatic Recycling System
E-Waste Separator
Production Line
High-efficiency PCB & electronic waste recycling with up to 99% metal recovery rate. Eco-friendly dry-type separation technology.
Product Overview
A fully integrated recycling solution for efficient recovery of copper, aluminum, and precious metals from PCB boards, circuit boards, cables, and mixed electronic scrap.
99% Metal Recovery
Full PLC Control
Eco-Friendly
Low Power
Modular Design
Continuous Operation
No Water Pollution
Applications
PCB Recycling PlantsE-Waste Recycling FacilitiesCopper Recovery IndustriesScrap Metal ProcessingSustainable Recycling Businesses
How It Works
From raw e-waste to pure recovered metals — a fully automated 7-step recycling process
01
Raw E-Waste Input
PCB boards, circuit boards, cables & electronic scrap are collected and prepared for processing.
≤300mm feeding size02
Conveyor Feeding
Automated loading conveyor feeds material into the shredder at a controlled, uniform rate.
PNCC-600 · 300–500 kg/h03
Shredding & Crushing
Dual-stage shredder breaks large boards into 5–20mm particles using high-alloy blades.
PNDS-600C · 30–37 kW04
Fine Pulverizing
High-speed pulverizer grinds particles into 0.2–0.3mm powder, releasing metal components.
PNMP-600 · 45 kW05
Air Separation
Gravity airflow separates light non-metallic materials from heavier metal particles.
WRAS-300 · ≥95% efficiency06
Electrostatic Separation
High-voltage electrostatic technology separates metals from non-metals with precision.
PNES-1500 · ≥99% recovery07
Pure Metal Output
Recovered copper, aluminum & precious metals ready for resale or industrial reuse.
≥98% purity
01
Raw E-Waste Input
PCB boards, circuit boards, cables & electronic scrap are collected and prepared for processing.
≤300mm feeding size
02
Conveyor Feeding
Automated loading conveyor feeds material into the shredder at a controlled, uniform rate.
PNCC-600 · 300–500 kg/h
03
Shredding & Crushing
Dual-stage shredder breaks large boards into 5–20mm particles using high-alloy blades.
PNDS-600C · 30–37 kW
04
Fine Pulverizing
High-speed pulverizer grinds particles into 0.2–0.3mm powder, releasing metal components.
PNMP-600 · 45 kW
05
Air Separation
Gravity airflow separates light non-metallic materials from heavier metal particles.
WRAS-300 · ≥95% efficiency
06
Electrostatic Separation
High-voltage electrostatic technology separates metals from non-metals with precision.
PNES-1500 · ≥99% recovery
07
Pure Metal Output
Recovered copper, aluminum & precious metals ready for resale or industrial reuse.
≥98% purity
Equipment Lineup
7 integrated systems working in sequence for maximum metal recovery
01WRED-300
Smoke Cleaning System
Industrial Smoke & Fume Purification Unit
Purifies harmful smoke and gases generated during PCB crushing and pulverizing. Multi-stage filtration with activated carbon and HEPA elements.
Multi-layer HEPA + Activated Carbon
≥99% filtration efficiency
Enclosed steel body
Safe toxic fume removal
| Parameter | Specification |
|---|---|
| Air Volume | 3,000–5,000 m³/h |
| Filtration Efficiency | ≥99% |
| Power | 3–5 kW |
| Voltage | 380V / 50Hz |
| Noise Level | ≤75 dB |
| Parameter | Specification |
|---|---|
| Air Volume | 3,000–5,000 m³/h |
| Filtration Efficiency | ≥99% |
| Power | 3–5 kW |
| Voltage | 380V / 50Hz |
| Noise Level | ≤75 dB |

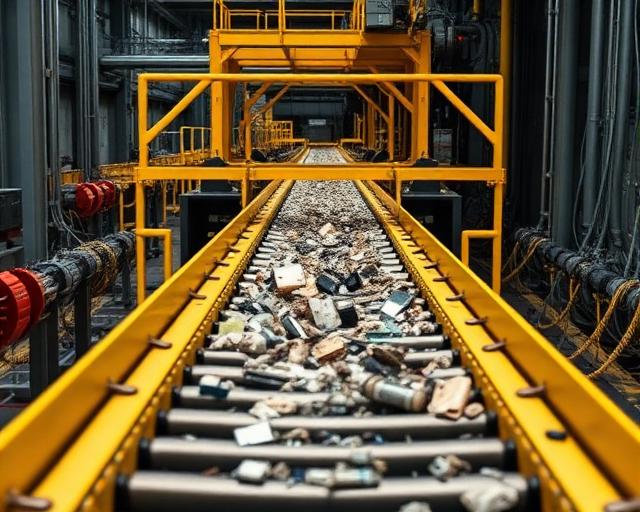

02PNCC-600
Loading Conveyor
Automatic Feeding Conveyor System
Feeds electronic waste into the shredder-crusher smoothly and continuously with uniform material flow and overload prevention.
Heavy-duty belt system
Variable speed control
Anti-slip design
300–500 kg/h capacity
| Parameter | Specification |
|---|---|
| Belt Width | 600 mm |
| Length | 3–6 m (customizable) |
| Motor Power | 1.5–2.2 kW |
| Capacity | 300–500 kg/h |
| Speed Control | Variable Frequency Drive |
| Parameter | Specification |
|---|---|
| Belt Width | 600 mm |
| Length | 3–6 m (customizable) |
| Motor Power | 1.5–2.2 kW |
| Capacity | 300–500 kg/h |
| Speed Control | Variable Frequency Drive |
03PNDS-600C
Shredder-Crusher Machine
Dual Function Crushing System
Primary size reduction unit breaking large PCB boards into smaller particles with high-strength alloy blades and heavy-duty rotor.
Dual-stage shredding & crushing
Wear-resistant alloy blades
High torque gearbox
Overload protection
| Parameter | Specification |
|---|---|
| Capacity | 300–600 kg/h |
| Blade Material | High Alloy Steel |
| Motor Power | 30–37 kW |
| Feeding Size | ≤300 mm |
| Output Size | 5–20 mm |
| Parameter | Specification |
|---|---|
| Capacity | 300–600 kg/h |
| Blade Material | High Alloy Steel |
| Motor Power | 30–37 kW |
| Feeding Size | ≤300 mm |
| Output Size | 5–20 mm |

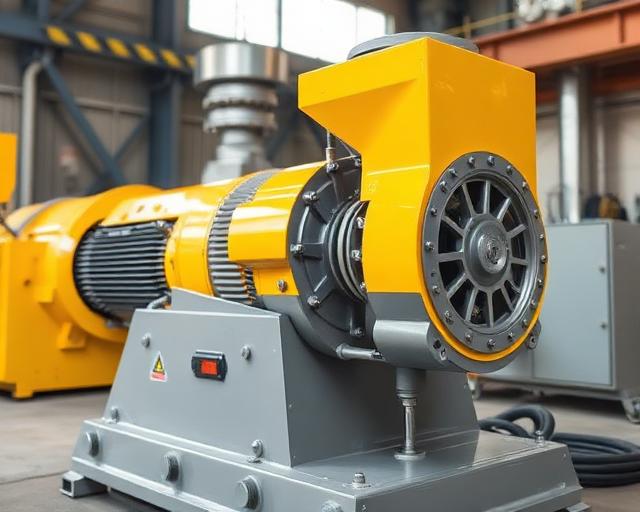

04PNMP-600
Pulverizer System
Fine Grinding Machine for PCB Powder
Grinds crushed PCB materials into fine powder to release metal and non-metal components, enhancing electrostatic separation efficiency.
High-speed grinding rotor
Adjustable mesh size
Air cooling system
Low vibration
| Parameter | Specification |
|---|---|
| Capacity | 300–500 kg/h |
| Output Size | 0.2–0.3 mm |
| Motor Power | 45 kW |
| Rotation Speed | 2,800–3,200 rpm |
| Cooling | Air Cooling |
| Parameter | Specification |
|---|---|
| Capacity | 300–500 kg/h |
| Output Size | 0.2–0.3 mm |
| Motor Power | 45 kW |
| Rotation Speed | 2,800–3,200 rpm |
| Cooling | Air Cooling |

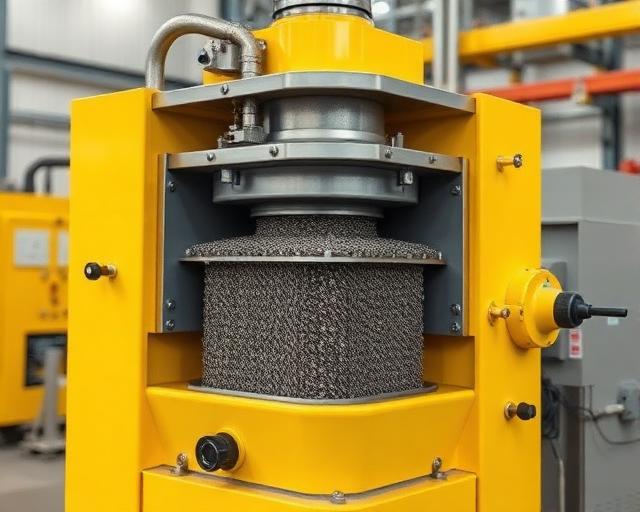

05WRAS-300
Air Separating Machine
Gravity Air Separation System
Separates light non-metallic materials from heavier metal particles using airflow technology for improved metal purity.
Adjustable airflow
≥95% separation efficiency
Low energy consumption
Continuous operation
| Parameter | Specification |
|---|---|
| Capacity | 300–500 kg/h |
| Power | 5–7 kW |
| Separation Efficiency | ≥95% |
| Voltage | 380V / 50Hz |
| Parameter | Specification |
|---|---|
| Capacity | 300–500 kg/h |
| Power | 5–7 kW |
| Separation Efficiency | ≥95% |
| Voltage | 380V / 50Hz |

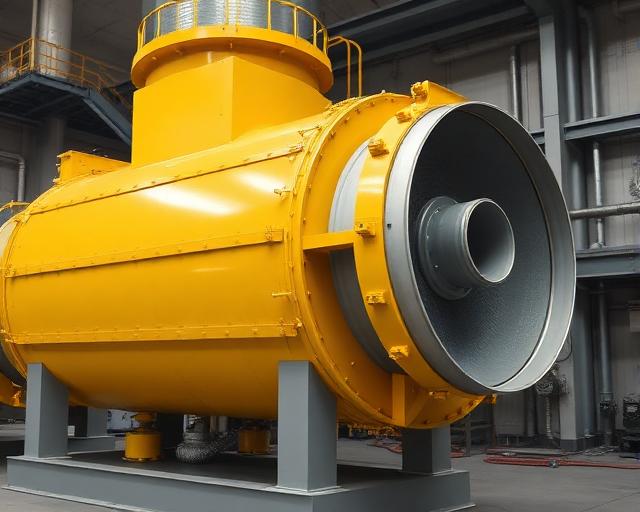

06PNPD-36
Pulse Dust Collector
Industrial Dust Removal Unit
Collects dust from shredding and pulverizing, ensuring a clean working environment and preventing secondary pollution.
Pulse jet cleaning
36 filter bags
≥99% efficiency
Automatic dust discharge
| Parameter | Specification |
|---|---|
| Filter Bags | 36 pcs |
| Filtration Efficiency | ≥99% |
| Air Volume | 4,000–6,000 m³/h |
| Power | 5.5 kW |
| Cleaning Method | Pulse Jet |
| Parameter | Specification |
|---|---|
| Filter Bags | 36 pcs |
| Filtration Efficiency | ≥99% |
| Air Volume | 4,000–6,000 m³/h |
| Power | 5.5 kW |
| Cleaning Method | Pulse Jet |

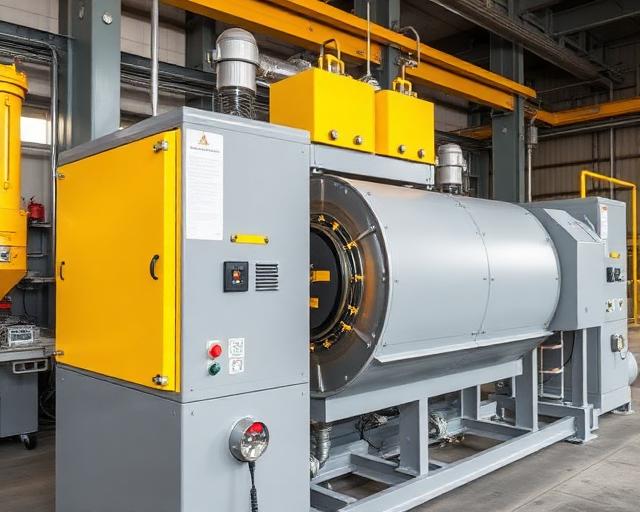

07PNES-1500
Electrostatic Separator
High Voltage Metal Separator
Core separation equipment using high-voltage electrostatic technology to separate metals from non-metals with high precision and ≥99% recovery.
Adjustable 0–50 kV voltage
≥98% separation purity
≥99% recovery rate
Fully enclosed structure
| Parameter | Specification |
|---|---|
| Capacity | 300–600 kg/h |
| Voltage | 0–50 kV adjustable |
| Power | 4–6 kW |
| Separation Purity | ≥98% |
| Recovery Rate | ≥99% |
| Parameter | Specification |
|---|---|
| Capacity | 300–600 kg/h |
| Voltage | 0–50 kV adjustable |
| Power | 4–6 kW |
| Separation Purity | ≥98% |
| Recovery Rate | ≥99% |
Production Line Capacity
300–600kg/h
Processing Capacity
99%
Metal Recovery Rate
120–150kW
Power Consumption
PLC
Automatic Control
Why Choose Us
Advanced Technology
Electrostatic separation with precision voltage control
High ROI
Fast payback with 99% metal recovery rates
Reliable Performance
Stable continuous operation with PLC control
Eco-Friendly
Zero water pollution, full dust & smoke compliance
Scalable
Suitable for medium & large recycling plants
Ready to Start Recycling?
Contact us for a customized quotation and technical consultation for your e-waste recycling needs.
